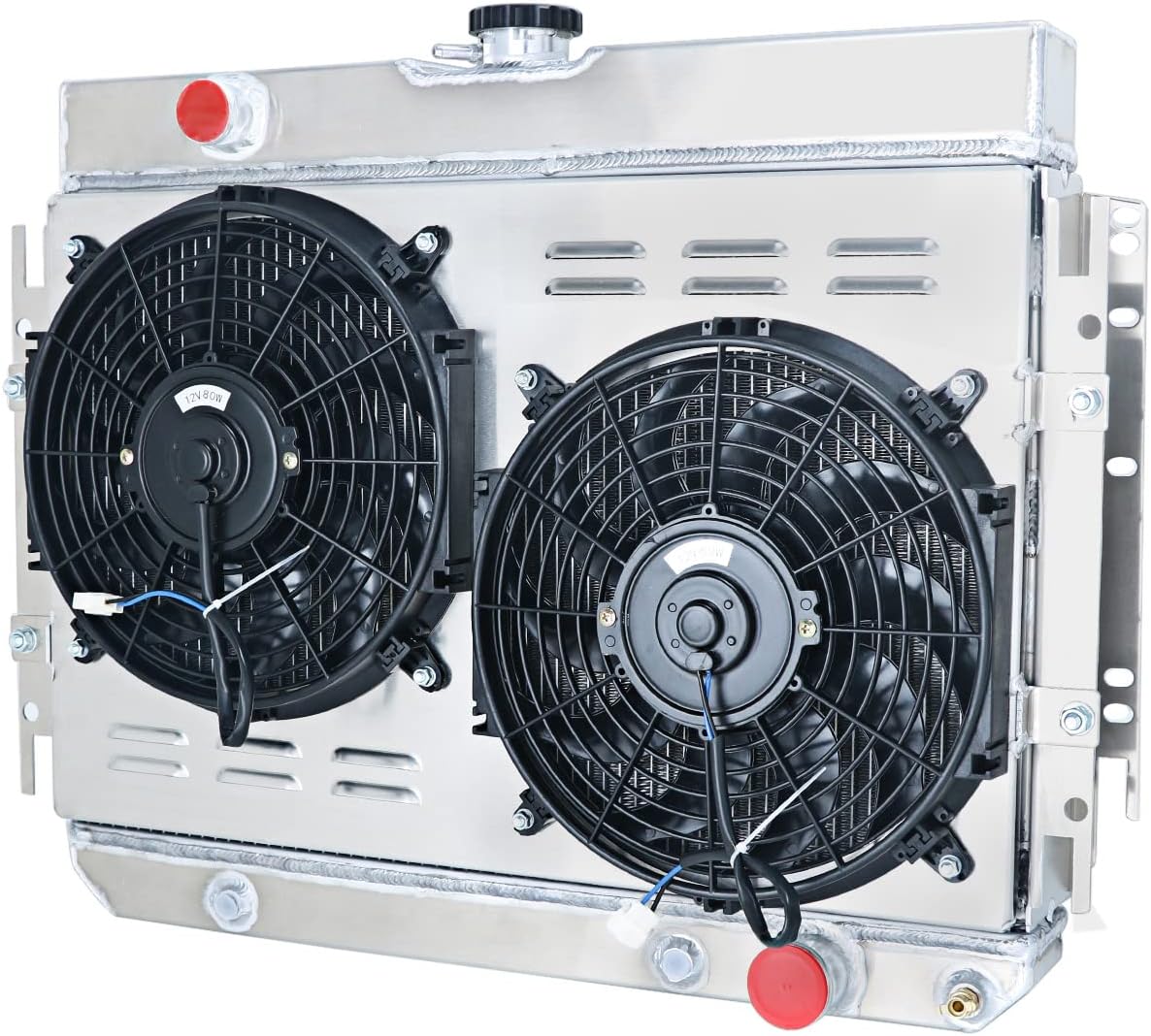

All Aluminum Radiator for Chevy Bel Air Biscayne Caprice Chevelle El Camino Impala Kingswood 1959-1968 Pickup Trucks, 3 Row Core Radiator + Shroud + Fan + Relay

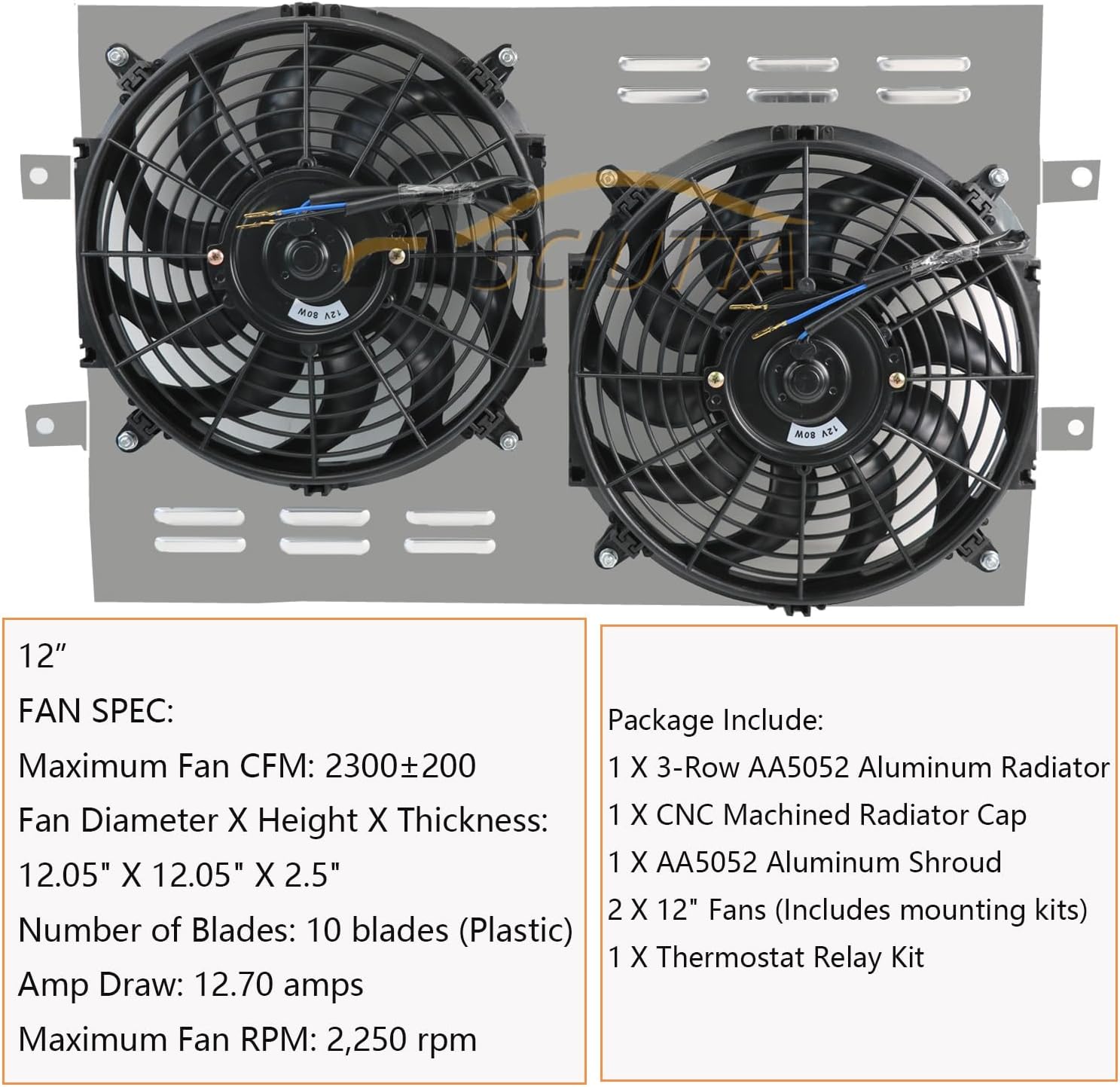

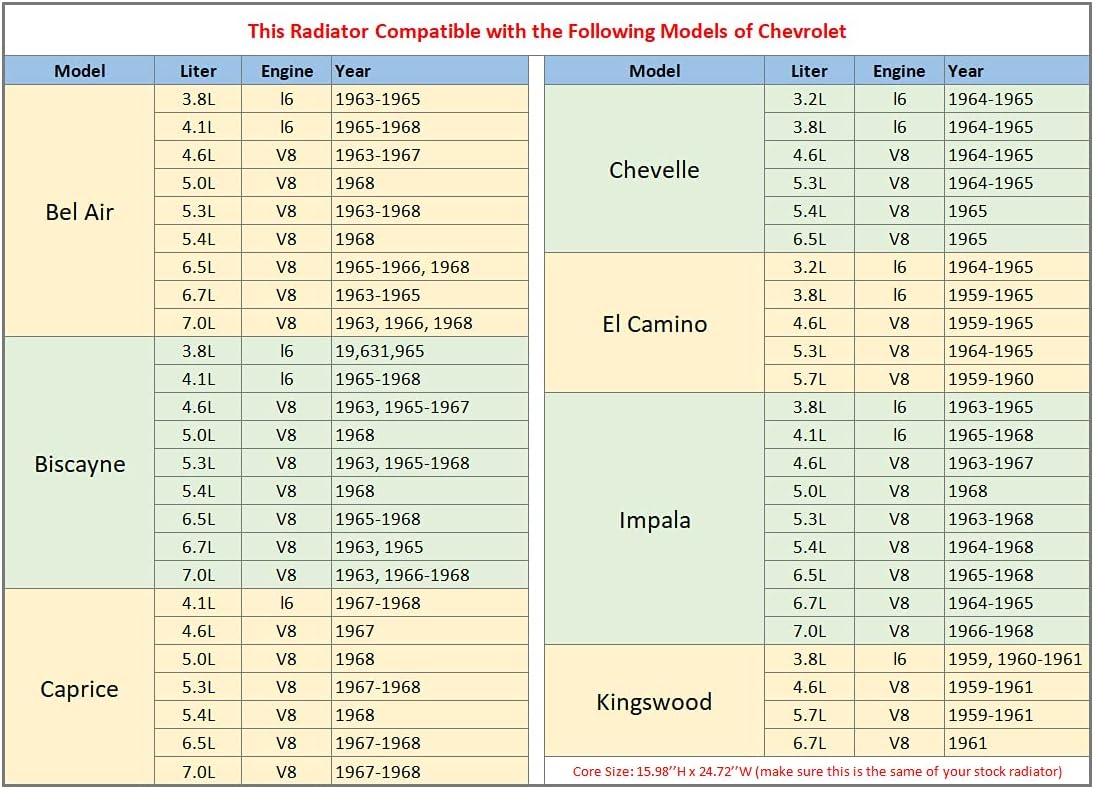

Fitment: For Chevy Impala 3.8L 4.1L 4.6L L6 5.0L 6.5L 7.0L V8 1963-1968 For Chevy Bel Air 3.8L 4.1L 4.6L L6 5.0L 6.5L 7.0L V8 1963-1968 For Chevy Chevelle 3.2L 3.8L L6 4.6L 5.3L V8 1964-1965 For Chevy Biscayne 3.8L 4.1L 4.6L L6 5.0L 6.5L 7.0L V8 1963-1968 For Chevy Caprice 3.2L 3.8L L6 4.6L 5.3L V8 1967-1968 For Chevy El Camino 3.2L 3.8L L6 4.6L 5.3L V8 1959-1965 For Chevy Kingswood 3.8L 4.6L 5.7L 1959-1961 For Chevy Malibu 3.2L 3.8L 4.1L 4.6L L6 5.3L 6.5L V8 1966-1967 This 3 Row radiator is designed fits for either a 3.8L(230ci) L6, 4.1L(250ci) L6, 4.6L(283ci) V8, or a 5.3L(327ci) V8 engine. Please Check Specs To Verify Fit for your vehicle Package Include: 1 X 3-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• Core Size : 15.99" H x 24.73" W x 1.73" T; Overall Size : 22.89" H x 27.95" W " T ; Upper Inlet 1.5" located on the Driver side ; Lower Outlet 1.78" located on the Passenger side ; Trans Cooler:￠26×305×G1/4（Z) ; Trans Cooler: 1/2" 20 Straight Thread G-1/4 ; Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4
• Features:100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation; Placement on Vehicle:Engine Compartment, Front ; Mounting Style:Screw-On ; Mounting Type is: Bracket
• OE/OEM Part Number: 289 MC289 DPI289 CC289 CU289 DPI289 SBR289 AE289 EC289 MC289 KKS289 Q289 SPTCU289
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• High performance: This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
