MEAN WELL original LRS-350-3.3 3.3V 60A meanwell LRS-350 3.3V 198W Single Output Switching Power Supply
Product details
| Management number | 212278622 | Release Date | 2026/04/06 | List Price | $16.13 | Model Number | 212278622 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

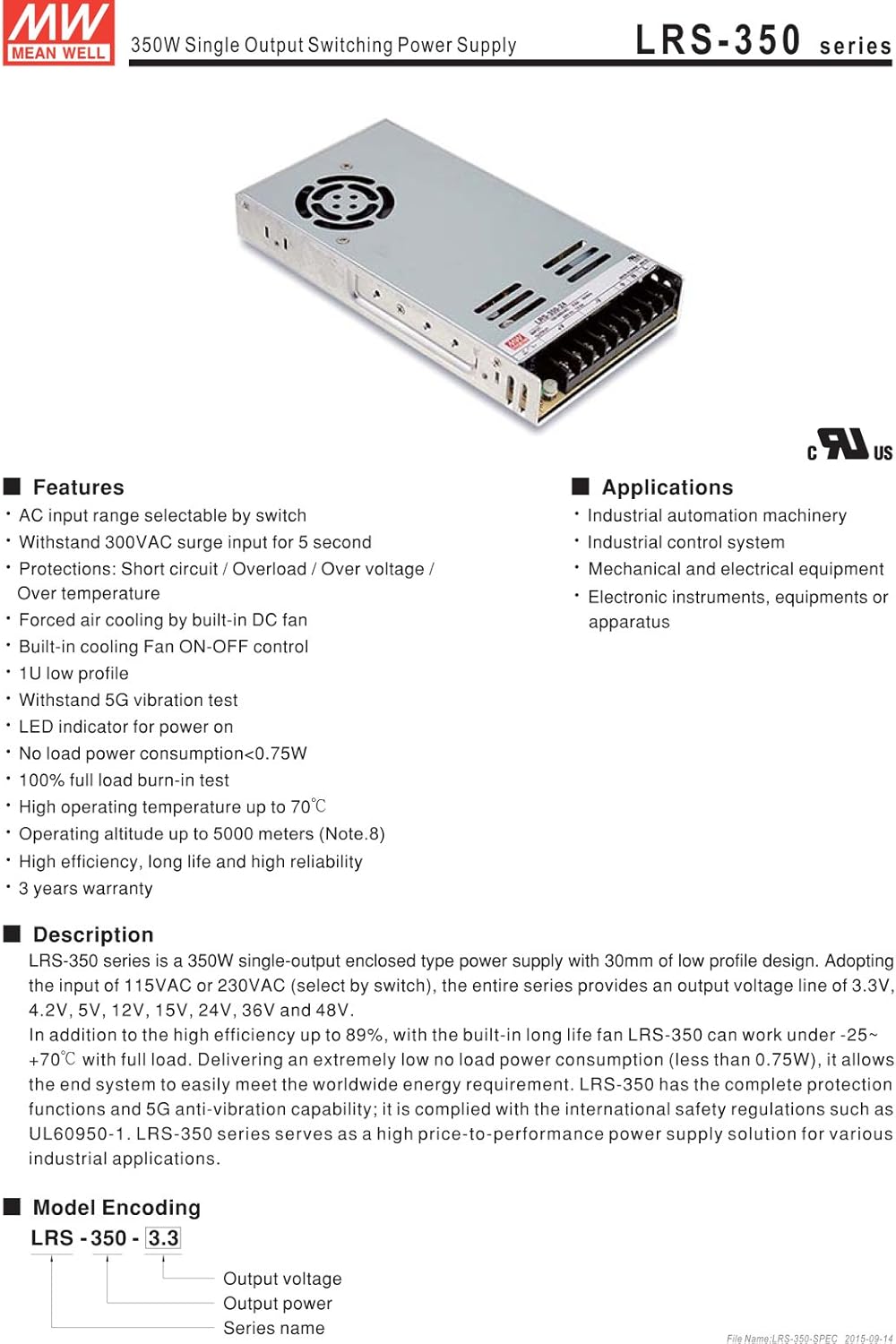

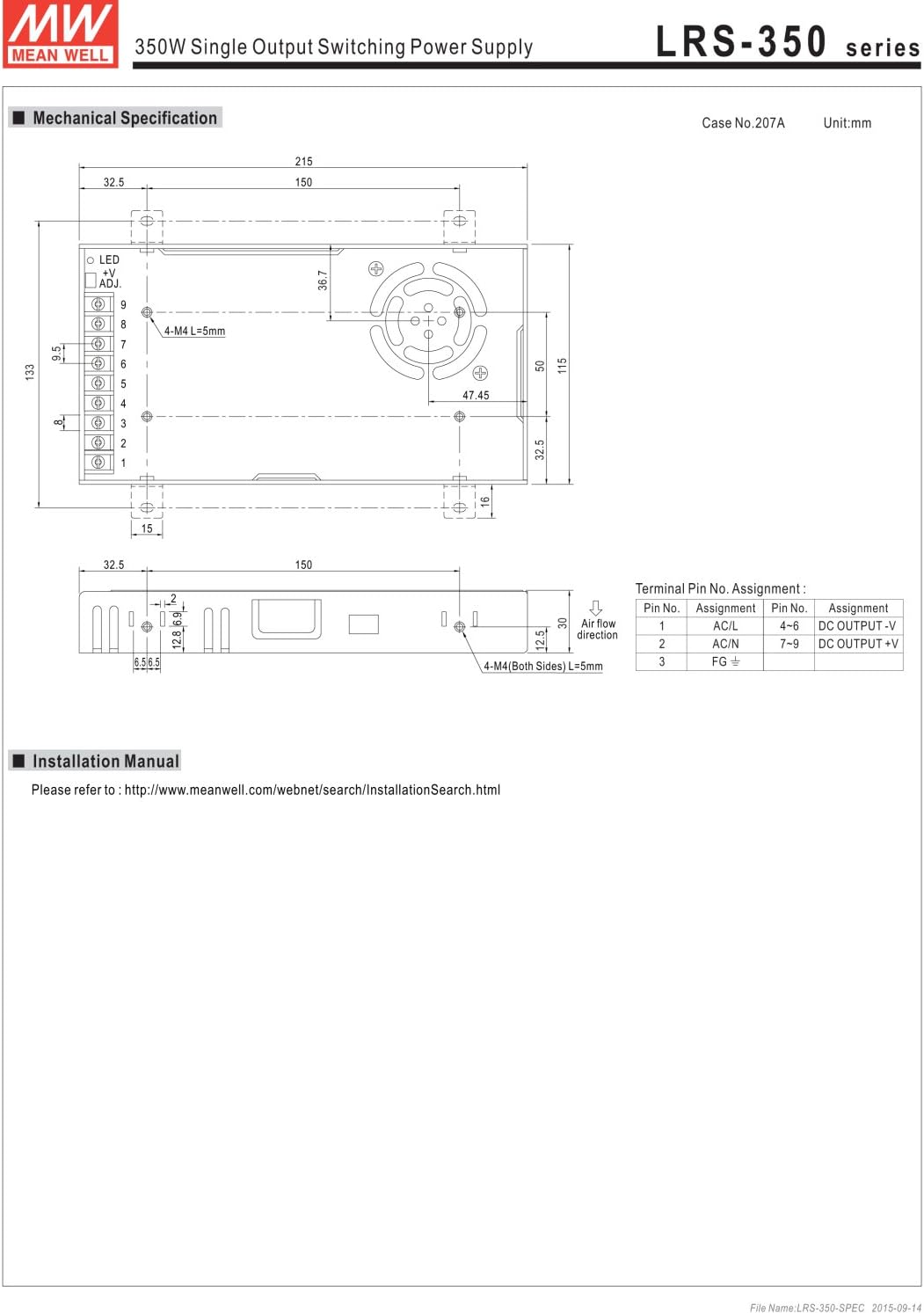

Features: No load power consumption <0.5W for 150W; <0.75W for 200W/350WAC input selectable by switchWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltage / Over temp.Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)Operating altitude up to 5000 metersLED indicator for power onHigh efficiency, long life and high reliabilityLow cost3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:115 / 230VAC by switchAC inrush current (max.):Cold start, 60A at 230VACDC adjustment range:±10% by potentiometerOverload protection Range:110%~140%Overload protection Type:Hiccup mode, auto-recoveryOver voltage protection Range:115%~145% rated output voltageOver voltage protection Type:Shut down o/p voltage, re-power on to recoverWithstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVACWorking temperature:-25~+70°C (refer to output derating curve)Safety standards:UL60950-1 approvedEMC standards:Design refer to EN55022 class AConnection:9P/9.5mm pitch terminal blockDimension (LxWxH):215x 115x 30
- Output Voltage: 3.3V
- Approx. Wattage: 200W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
| UPC | 647336003567 |
|---|---|
| Brand | EverSale |
| Wattage | 200 watts |
| Model Name | lrs-350,lrs-350-3.3 |
| Manufacturer | Mean Well |
| Model Number | LRS-350-3.3 |
| Cooling Method | Air |
| Number of Fans | 1 |
| Output Wattage | 150 Watts |
| Item Dimensions | 8.46 x 4.53 x 1.18 inches |
| Mfr Part Number | LRS-350-3.3 |
| Minimum Input Voltage | 115 Volts |
